Description

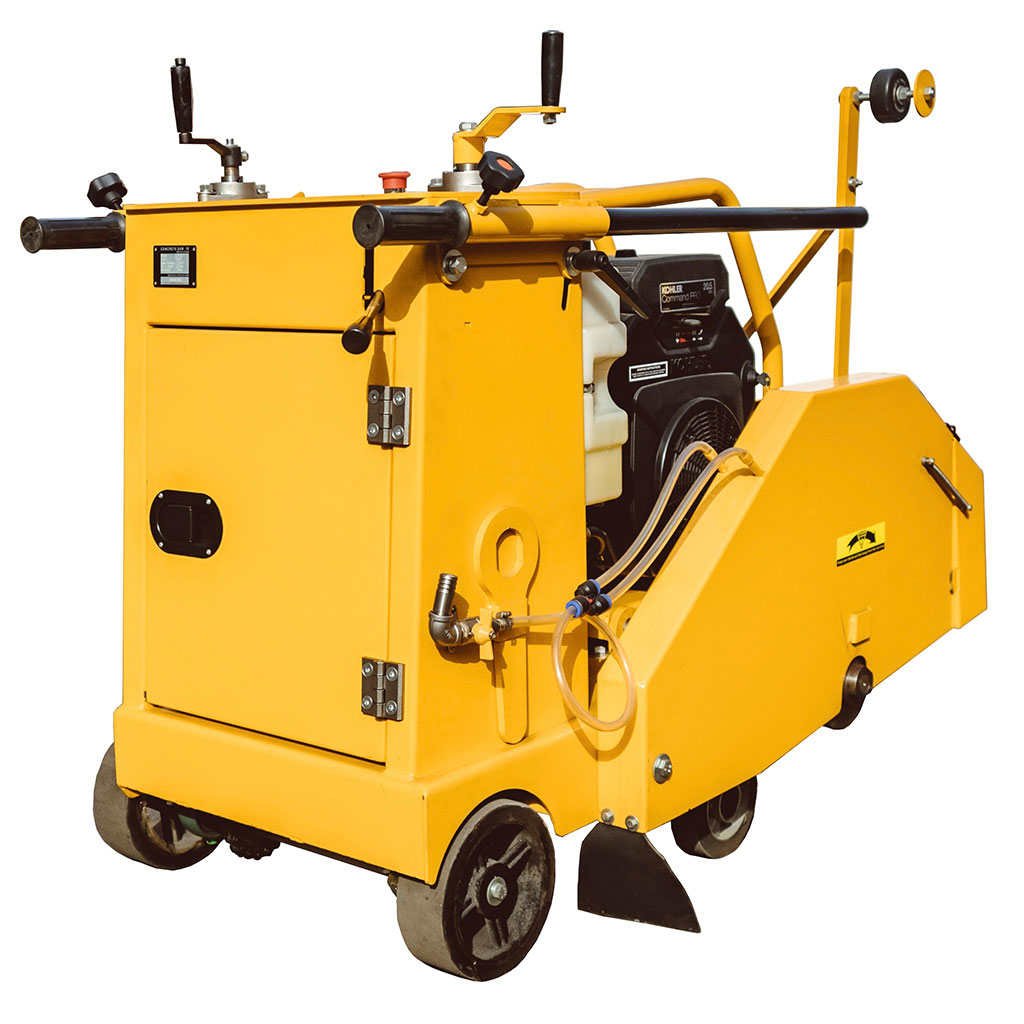

How to use floor cutter

◾ Cutting a concrete floor is not hard to accomplish if you have the right tools on hand.
◾ Mark the floor with a chalk line or a piece of sidewalk chalk to indicate where the cuts are needed.
◾ Open windows to ensure adequate ventilation. Close the water flow valve on the cutter and turn the water on.
◾ Start the engine on the concrete cutter. Turn the water on so there is a steady flow that will keep the dust away and keep the blade cool.
◾ Ease the cutter blade into the surface of the concrete. Do not plunge the blade into the concrete too quickly as this could harm the blade, the machine and you. Follow the marks on the concrete and complete the cut.
◾ Shut the cutter engine off after shutting the water valve off. Allow the engine to cool, then hose the machine off and clean it well.

Model	HP – Q450H	HP-Q450D	Q700
Engine	Honda GX390 Petrol	Robin DY23D/Yanmar L48 Diesel	AIR-COOLED, SINGLE CYLINDER, 4-STROKE
Type of Combustion	Air – cooled,single cylinder, 4-stroke	Air – cooled,single cylinder, 4-stroke	PETROL,KOHLER COMMANDPRO CH640
Disc diameter (Option)	350mm; 400mm;450mm	350mm; 400mm;450mm	110 x 81 x 104mm
Max. Cutting depth	160mm	160mm	250mm
Operating weight	140 kg	140 kg	275kg
Shipping size (package size)	980 x 640 x 1100mm	980 x 640 x 1100mm	110 x 81 x 104mm

CONSUMABLES

Authorized Distribution For:

Dia-Pro Tools – Diamond blades, stone saws, profile wheels, diamond core bits, diamond polishing discs and many other tools.

FAQ’s

What is a floor cutter and what is it used for?

A floor cutter is a construction machine used to cut concrete, asphalt, and other hard surfaces precisely and efficiently. It is commonly used for road repairs, motorways, slabs, and construction projects requiring clean cuts.

What types of blades are used with floor cutters?

Diamond concrete and asphalt cutting blades are commonly used. They can operate wet or dry, but wet cutting is preferred because it:

Prevents blade overheating
Reduces harmful dust
Removes slurry from the cut
Extends the blade’s lifespan

How do I safely operate a floor cutter?

Mark the cut line on the surface using chalk. Follow the line using the small disc attached to the front of the machine.
To maximize blade life, avoid cutting the full depth in one pass. Make multiple shallow passes until the desired depth is reached.
Ensure proper ventilation – (Operator must wear a mask)
Open the water flow for wet cutting to cool the blade
Start the engine and slowly guide the blade into the material
Follow marked lines carefully and avoid plunging the blade too quickly
Turn off the engine and water flow after cutting, let the machine cool, then clean it
