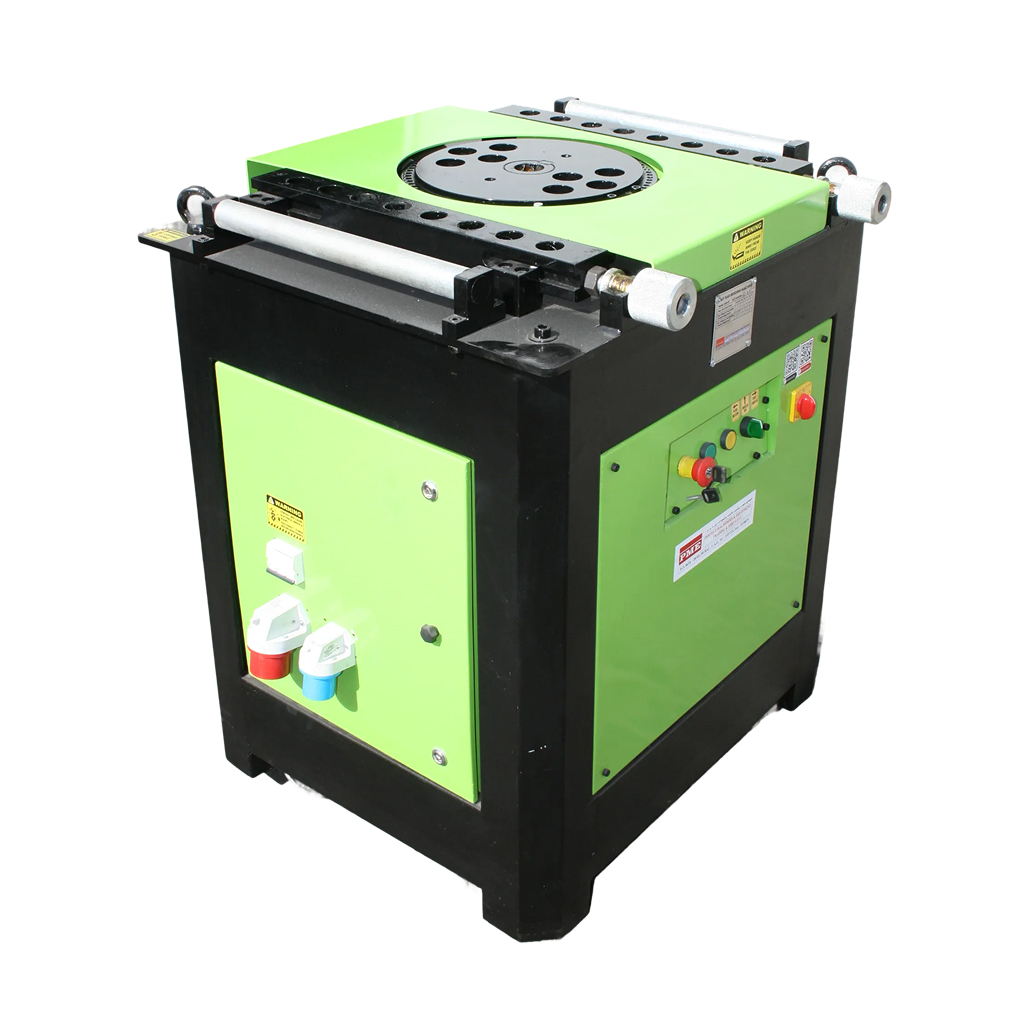

Bar Bending Machine
The Bar Bending Machine comes with Electrical Braking which eliminates the cost of maintenance of mechanical brakes. Thus no maintenance cost unline mechanical brakes. PME supplies Bar Bencing Machines in Dubai.
BAR BENDING MACHINE
Description
 |
 |
 |
 |
 |
 |
| ELECTRICAL BREAKING | LIMIT SWITCH | BRANDED ELECTRICAL PARTS | ZZBEARING & OIL SEAL | FOOT PEADAL | CIRCUIT DIAGRAM |
| The Bar Bending Machine comes with Electircal Braking which eliminates cost of maintenance of mechanical brakes. Thus no maintenance cost unline mechanical brakes | The machine has two limit switches at both sides(front and back). The limit switch is used to restrict the rotation of bend wheel over 360 degrees. This allows getting the exact bend at a selected angle. | The machine has all the Branded electrical Components. It comes with delay timer and rectifier. With delay timer, the return operation is delayed for safety reasons. | It is provided in gear box. It prevents dust particles & iron powder to percolate in the gear box. It keeps the oil in gear box clean, thereby adding life to machine & cost saves | The machine is operational only when the foot pedal is kept pressed and once the foot is revoved, the machine stops, thus providing safe operations. It also comes with food guard cover for higher safety from hazards at constuction sites. | The Circuit Diagram is given on inside of Panel Door. It comes ith quick reference of components, spare part number, codes, etc hence helping you to diagnose the fault without any loss of time thus saving your time, money & energy |
BENDING MACHINE – GLADIATOR SERIES
| MACHINE MODEL | MACHINE DIMENSIONS {L x W x H} |
OVERALL WEIGHT | MOTOR CAPACITY | BEND WHEEL SPEED |
BEND WHEEL DIA. | MAX. BEND RADIUS | BUSHES SUPPLIED |
| SBM 16 | 1485 x 585 x 825 | 125KG | 1 HP | 18.0 rpm | 172mm | – | – |
| SBM 42 | 945 x 760 x 960 mm | 325KG | 5 HP | 9.4rpm | 300mm | 4D of 032 | 060,070,0100 & 0120 |
| SBM 52V | 1105 x 815 x 960 mm | 385KG | 5 HP | 9.4rpm | 425mm | 5D of 032, 4D of 036 | 060,070,0100 & 0120 & 0160 |
| SBM 55V | 1215 x 935 x 1085 mm | 550KG | 7.5 HP | 6.0 rpm | 500mm | 6D of 036, 5D of 040 | 060,070,0100 & 0120 & 0160 & 0220 |
| SRB 52 | 1075(L)x895(B)x1015(L) | 385KG | 5 HP | 30 rpm | 300(min) 6000(max) | 360 Degree Bending Angle | |
