POKER VIBRATOR DRIVE UNIT

PME Dubai also acts as a supplier of poker vibrators in Dubai. A poker vibrator is a construction tool used on concrete pouring sites. It is used to ensure that a pour is even and free of air bubbles so that the concrete will remain strong and even after the formwork is removed. For those seeking the best concrete vibrating machine, PME offers high-quality options to meet the demands of any construction project. While not necessary for small jobs, this tool is essential for large load-bearing projects.

It can be coupled to electric, petrol, or diesel vibrator units.

GASOLINE	DIESEL	ELECTRIC
Powered By PETROL Engine	Powered By DIESEL Engine	Powered By ELECTRIC Motor
Power: 5hp	Power: 4.7hp	Power: 1.5hp
Rpm: 3600	Rpm: 3600	Rpm: 3000
Starter: Recoil	Starter: Recoil	Voltage: 230
Tank Capacity: 3.8L	Tank Capacity: 3.2L	Single Phase
Weight – 22kg	Weight – 35kg	Weight – 12kg

Description

Using A Poker Vibrator

Remove Deep Air Pockets And Voids In Concrete Walls With A Poker Vibrator. Stand On The Top Of The Wall Forms, Bracing One Leg On Either Side As Soon As Possible After The Wet Concrete Is Poured Into The Forms. A Poker Vibrator Works Only When The Concrete Is Still Very Wet. Lower The Poker Vibrator Needle Into The Middle Of The Wet Concrete And Turn On The Power Button. The Weight Of The Poker Vibrator Needle, Combined With The Vibration, Will Allow It To Sink Quickly Into The Concrete. When The Poker Vibrator Needle Reaches The Bottom Of The Form, Pull It Back Up Smoothly.

Move Approximately 1-Foot Down The Wall And Repeat The Action. Each Time The Poker Vibrator Needle Sinks Into The Wet Concrete, It Will Help The Concrete Particles To Settle Into A Solid Mass And Encourage Trapped Air To Rise Up And Out Of The Wet Concrete.

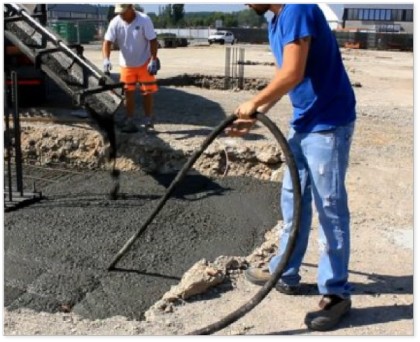

Remove Deep Air Pockets And Voids In Concrete Walls With A Poker Vibrator - PME Dubai

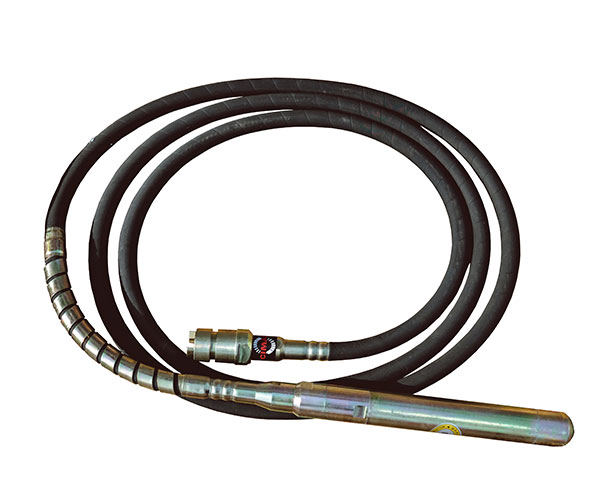

POKER SHAFT/NEEDLE

DIAMETER	LENGTHL	RPM
28mm	6mtrs / 10mtrs	3000
38mm	6mtrs / 10mtrs	3000
45mm	6mtrs / 10mtrs	3000
60mm	6mtrs / 10mtrs	3000

AUTHORIZED DISTRIBUTOR FOR CIMAR

CIMAR was founded in Singapore on 1981. They supply and manufacture construction equipment and have a favourable reputation in Singapore.

Powered By

FAQS

What is a Poker Vibrator?

A poker vibrator is a construction tool used to compact freshly poured concrete by removing air bubbles and voids. This ensures the concrete sets evenly, achieving maximum strength and durability once the formwork is removed.

Why is using a Poker Vibrator important?

Using a poker vibrator helps eliminate trapped air pockets in concrete, ensuring a dense and uniform structure. It enhances the concrete’s strength and prevents cracks or weak spots, making it essential for large or load-bearing construction projects.

What types of Poker Vibrators are available at PME Dubai?

PME Dubai offers electric, petrol, and diesel-powered poker vibrators, allowing you to choose the ideal model based on your site power availability and project scale.

What are the specifications of PME Dubai’s Poker Vibrators?

Gasoline Model: 5 HP, 3600 RPM, 3.8L tank, recoil starter, weight 22kg
Diesel Model: 4.7 HP, 3600 RPM, 3.2L tank, recoil starter, weight 35kg
Electric Model: 1.5 HP, 3000 RPM, 230V, single phase, weight 12kg

How is a Poker Vibrator used?

After concrete is poured, the vibrator needle is lowered into the wet mix and turned on. The vibrations help the concrete particles settle and release trapped air. The process should be repeated across the surface to ensure full compaction before the concrete begins to set.
